管夾(雙面固定管夾)

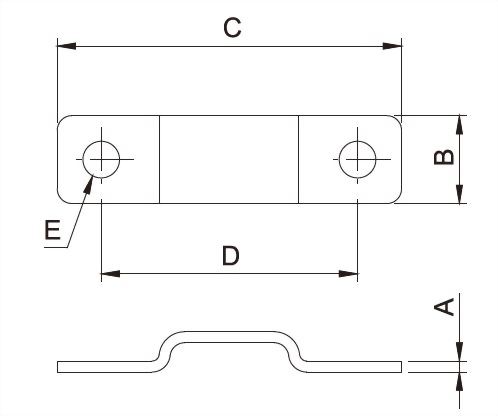

| No. | 型號 | 固定孔數 | 適用管徑 | 可固定管數 | 厚度 A (mm) | 寬度 B (mm) | 長度 C (mm) | 固定孔距 D (mm) | 螺絲孔 E (mm) | 淨重 (g) |
| 1 | PZ-220415 | 2 | φ4 | 2 | 1.5 | 13 | 47 | 32 | 7 | 6.4 |
| 2 | PZ-230415 | 2 | 3 | 1.5 | 13 | 47 | 32 | 7 | 6.6 | |
| 3 | PZ-240415 | 2 | 4 | 1.5 | 12 | 47 | 35 | 5 | 6.3 | |
| 4 | PZ-250415 | 2 | 5 | 1.5 | 13 | 55 | 38 | 7 | 7.7 | |
| 5 | PZ-210615 | 2 | φ6 | 1 | 1.5 | 13 | 45 | 30 | 7 | 6.6 |
| 6 | PZ-220616 | 2 | 2 | 1.6 | 12 | 46 | 30 | 7 | 6.8 | |
| 7 | PZ-230616 | 2 | 3 | 1.6 | 12 | 54 | 37 | 7 | 8.0 | |
| 8 | PZ-240616 | 2 | 4 | 1.6 | 12 | 54 | 40 | 6.5x8 | 8.0 | |
| 9 | PZ-211016 | 2 | φ10 | 1 | 1.6 | 13 | 46 | 30 | 7 | 8.0 |
| 10 | PZ-231016 | 2 | 3 | 1.6 | 12 | 66 | 51 | 7 | 10.4 | |
| 11 | PZ-241016 | 2 | 4 | 1.6 | 15 | 77 | 62 | 7x9 | 14.8 | |
| 12 | PZ-211216 | 2 | φ12 | 1 | 1.6 | 13 | 45 | 30 | 7 | 8.4 |
| 13 | PZ-221216 | 2 | 2 | 1.6 | 10 | 53 | 39 | 5x7 | 7.7 | |
| 14 | PZ-221515 | 2 | φ15 | 2 | 2.0 | 20 | 80 | 61 | 7x9 | 28.0 |
| 15 | PZ-212816 | 2 | φ28 | 1 | 1.6 | 20 | 74 | 57 | 7 | 25.0 |
