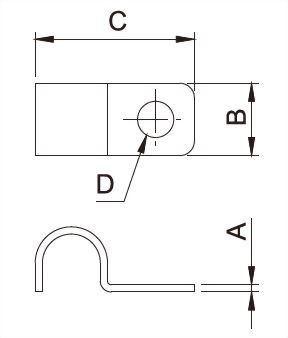

管夾(單面固定管夾)
| No. | 型號 | 固定孔數 | 適用管徑 | 可固定管數 | 厚度 A (mm) | 寬度 B (mm) | 長度 C (mm) | 螺絲孔 D (mm) | 淨重 (g) |
| 1 | PZ-110410 | 1 | φ4 | 1 | 1.0 | 10 | 19 | 5 | 1.6 |
| 2 | PZ-120410 | 2 | 1.0 | 10 | 23 | 5 | 1.9 | ||
| 3 | PZ-130410 | 3 | 1.0 | 10 | 27 | 5 | 2.2 | ||
| 4 | PZ-140410 | 4 | 1.0 | 10 | 31 | 5 | 2.2 | ||
| 5 | PZ-150410 | 5 | 1.0 | 10 | 35 | 5 | 2.8 | ||
| 6 | PZ-110610 | 1 | φ6 | 1 | 1.0 | 10 | 21 | 5 | 2.0 |
| 7 | PZ-120610 | 2 | 1.0 | 10 | 27 | 5 | 2.5 | ||
| 8 | PZ-130610 | 3 | 1.0 | 12 | 33 | 5 | 3.6 | ||
| 9 | PZ-110810 | 1 | φ8 | 1 | 1.0 | 10 | 22 | 5 | 2.3 |
| 10 | PZ-120810 | 2 | 1.0 | 12 | 32 | 5 | 3.7 | ||
| 11 | PZ-111010 | 1 | φ10 | 1 | 1.0 | 10 | 27 | 5 | 2.8 |
| 12 | PZ-121012 | 2 | 1.2 | 12 | 40 | 5 | 5.7 | ||
| 13 | PZ-111212 | 1 | φ12 | 1 | 1.2 | 12 | 32 | 5 | 5.0 |
| 14 | PZ-111516 | 1 | φ16 | 1 | 1.6 | 20 | 43 | 7 | 14.0 |
| 15 | PZ-110320 | 1 | 3/8" (φ18.5) | 1 | 2.0 | 20 | 47 | 7 | 19.4 |
| 16 | PZ-110420 | 1 | 1/2" (φ21.5) | 1 | 2.0 | 20 | 52 | 7 | 22.6 |
| 17 | PZ-112216 | 1 | φ23 | 1 | 1.6 | 20 | 48 | 7 | 17.0 |
| 18 | PZ-110620 | 1 | 3/4" (φ26) | 1 | 2.0 | 20 | 55 | 7 | 26.4 |
| 19 | PZ-112816 | 1 | φ29 | 1 | 1.6 | 20 | 57 | 7 | 22.2 |
| 20 | PZ-113316 | 1 | φ34 | 1 | 1.6 | 20 | 64 | 7 | 25.2 |
| 21 | PZ-110820 | 1 | 1" (φ33) | 1 | 2.0 | 20 | 64 | 7 | 32.6 |
| 22 | PZ-115020 | 1 | φ51 | 1 | 2.0 | 20 | 83 | 7 | 45.0 |
